IDC 3B184SK
IDC Select QD-Style Sheave
Use with "A" or "B" Belts
Features
- Precision Machined from Gray Cast Iron
- Statically Balanced
- Baked Enamel Finish
- Accepts "QD" Style Bushings
- Cast Iron Sheaves Should Not Exceed 6500 FPM Rim Speed.
- Special or Dynamic Balancing Should be Considered when Speeds Exceed 5000 FPM.
Alternative Part Numbers: 3B184SK IDC, IDC 3B184SK
Unit of Measure: EA
Package Quantity: 1
Alternate PN: 3B184SK IDC, IDC 3B184SK
Products specifications
|
Number of Grooves
|
3
|
|
Outside Diameter (in)
|
18.75
|
|
Pitch Diameter with A Belt (in)
|
18
|
|
Pitch Diameter with B Belt (in)
|
18.4
|
|

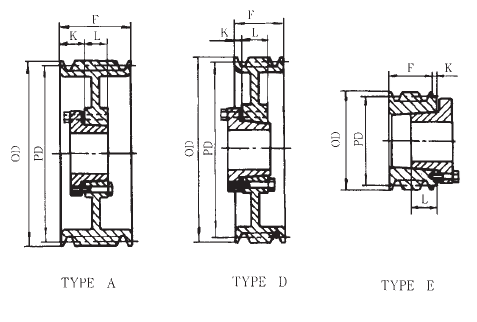

Type
|
A-3
|
|
Bushing Required
|
SK
|
|
Face Width Dim. F (in)
|
2-1/2
|
|
Rim/Hub Offset Dim. K (in)
|
11/16
|
|
Hub Length Dim. L (in)
|
1-15/16
|
|
Comment
|
Machined from Gray Cast Iron, Statically Balanced, Baked Enamel Finish, Individually Packaged
|
